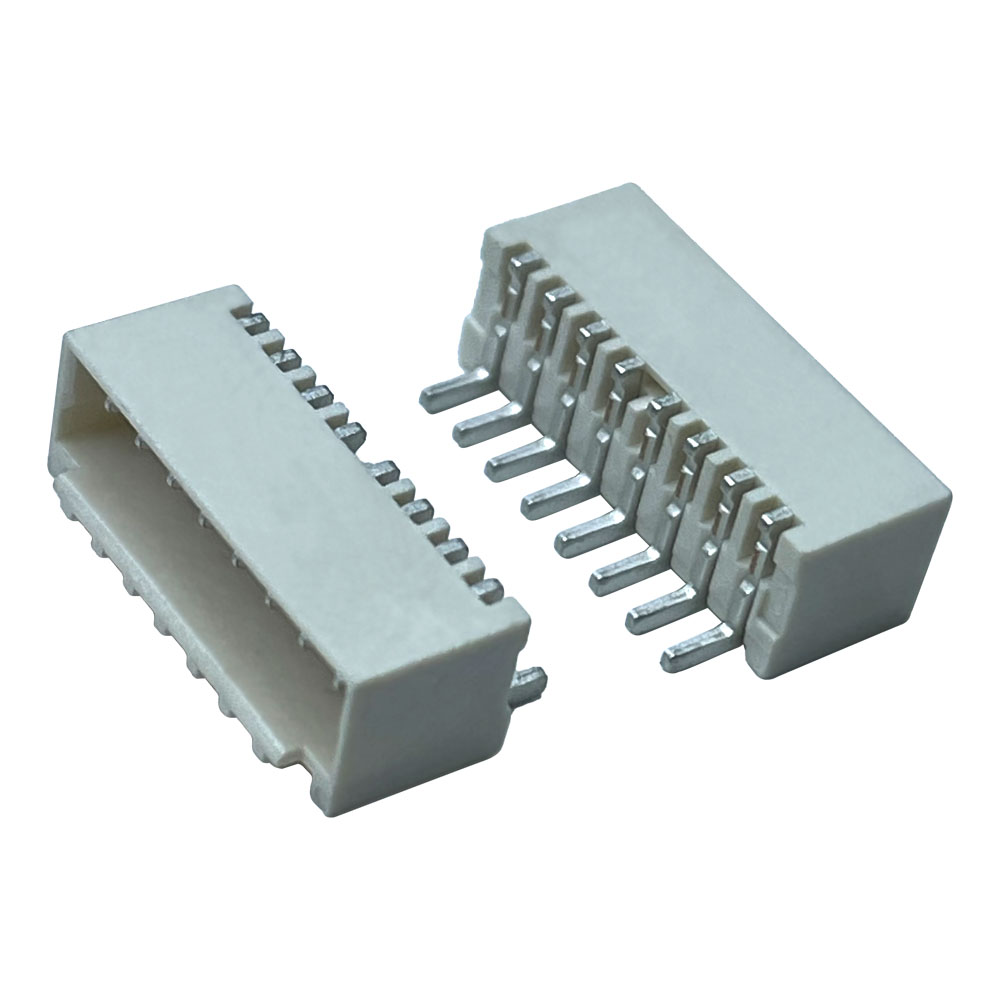

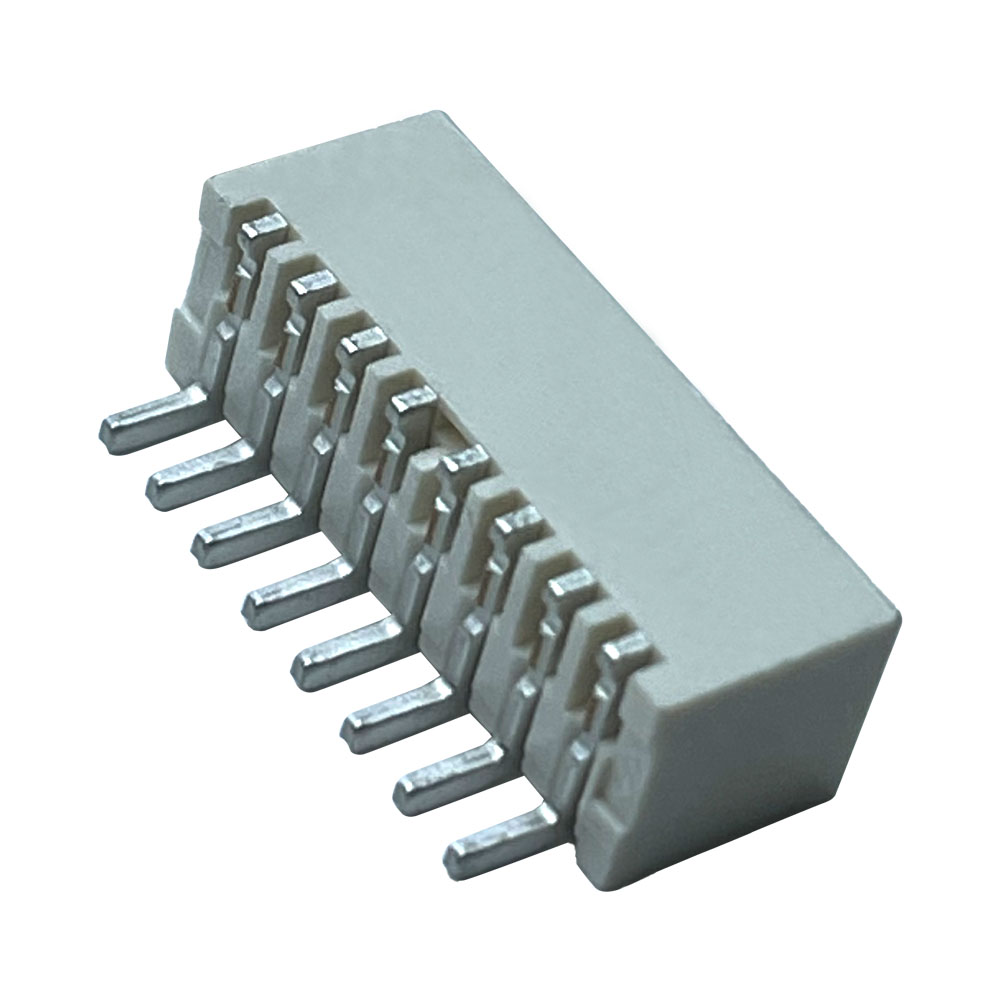

1.50mm Pitch Single Row W/B Header Right Angle Type

1.50mm Pitch Single Row W/B Header Right Angle Type

BLK W/B Header Connectors are appliacation in Digital imaging, Tester and other controller machine etc device.

0.00
0.00


BLK W/B Header Connectors are appliacation in Digital imaging, Tester and other controller machine etc device.

  • Production Name: 1.50mm Pitch Single Row W/B Header Right Angle STM Type

  • P/N: WBM150-44508M-TN05NL

  • Specification:

  • Pin Number：1*2Pin... ...1*15Pin

  • Material：LCP  UL 94V-0

  • Color：Natural

  • Contact: Phosphor Bronze

  • Current rating: 3A

  • Voltage rating：350V AC/Min

  • Contact Resistance：20m Ohm Max

  • Insolation Resistance：1000M Ohm Min

  • Dielectric Withstand Voltage：500V AC/Minute

  • Temperature rate:  -20℃～+85℃

  • Plating: 80-120u" Matte tin plated over 20～50u" nickel plated


      Download PDF Drawing File
